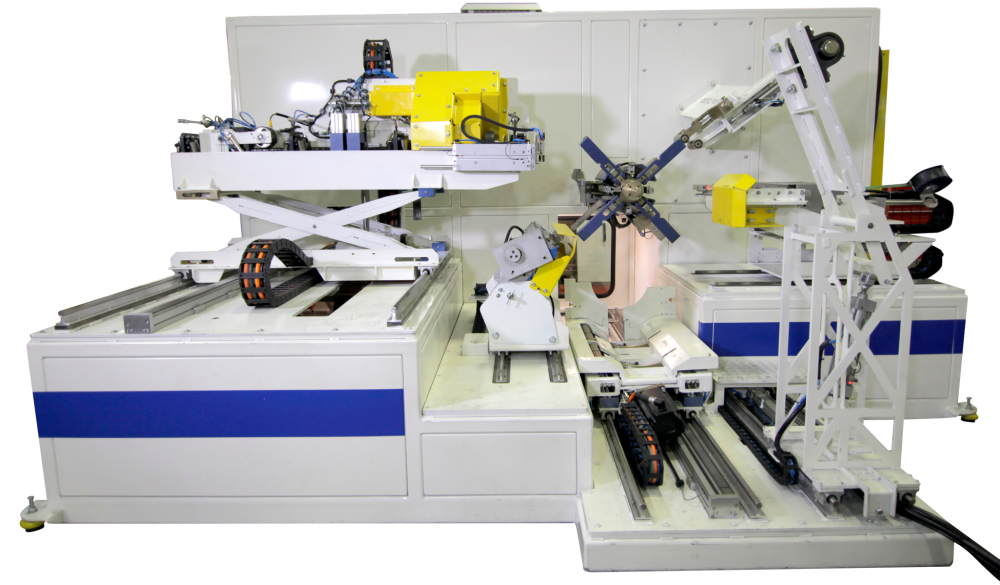

Automatic Rewind Coiler & Reeler

For Coiling/ Re-spooling Corrugated Stainless Steel Gas Line

Coils, Reels, Bands, Wraps, Ejects, Cuts, & Conveys

FEATURES:

  • Programmable recipe management
  • Allen-Bradley Controls Package: Includes PLC’s and Servos.
  • Material jog function
  • Left to Right Configuration
SKU
ARCR-040
Part Number:
ARCR-040

Please call

SPECIFICATIONS:
  • Heavy gauge mainframe with bolt down tabs and antivibration floor pads.
  • Precision coiling head with 1”-9” capacity. Manually adjustable width, 12”ID by 24”OD.
  • Single reel re-spooling for wood spools (20” diameter x 12” or 21” wide) with 1.568 arbor holes and up to 100 lb maximum weight capacity.
  • Heavy duty clamp/cutter.
  • Traverse system driven by independent AC servo drive and is electronically integrated to spindle drive for precision coordination.
  • Traverse system driven by independent AC servo drive and is electronically integrated to spindle drive for precision coordination.
  • Industrial grand banding system which is mechanically and electronically integrated with SSTU coiling systems.
  • Stretch wrapping system for spools.
  • Automatic ejection system.
  • Patent pending, customized pipe cutter.
  • Customized conveyor system.
