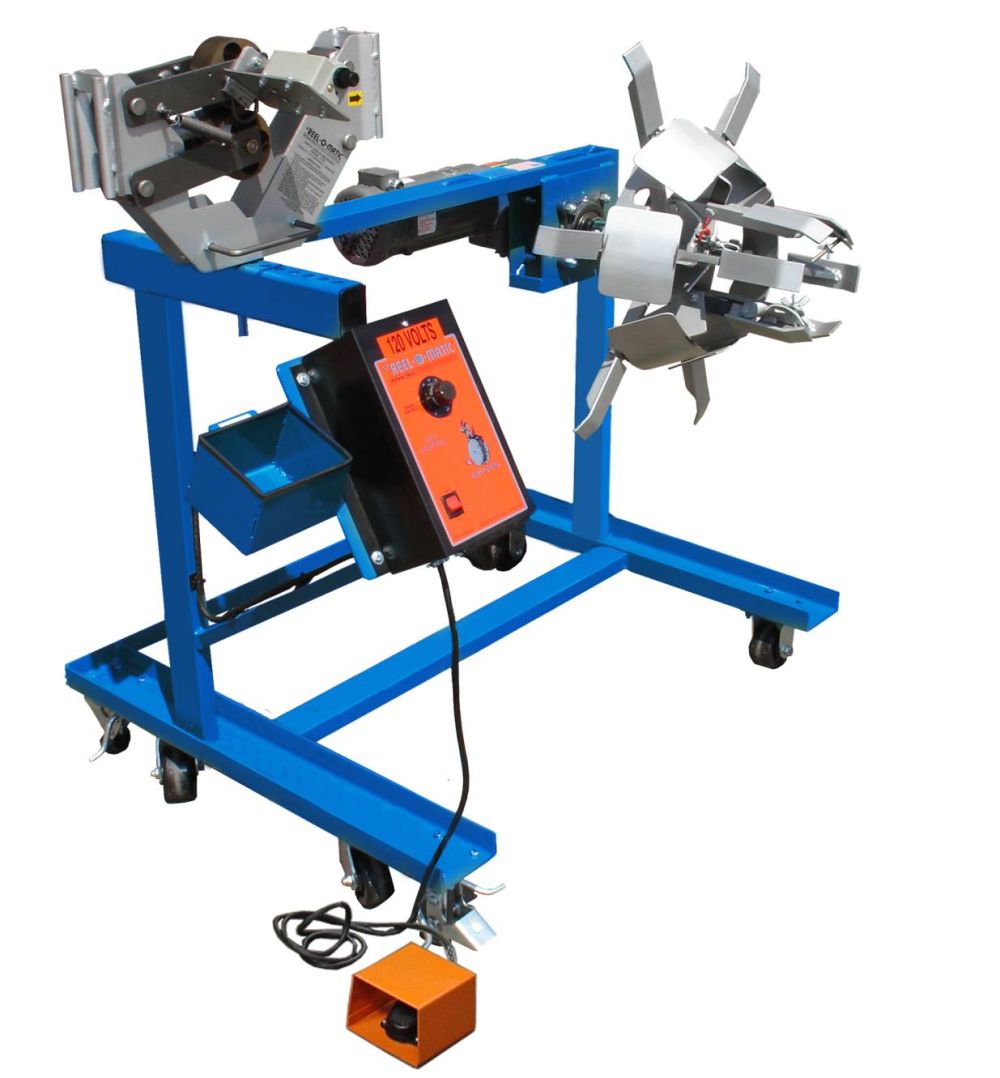

The “Mini-Penthouse” is ideally suited for pulling material from reel racks, reel roller platforms or a pay-out cart. Also, ideal for use with an extrusion line when equipped with a dancer or tension control.
See the detail tab below for a list of Standard features which are included with the “Mini-Penthouse”
The “Mini-Penthouse” is ideally suited for pulling material from reel racks,reel roller platforms or a pay-out cart. Also, ideal for use with an extrusion line when equipped with a dancer or tension control.
Standard Features:
A - Variable Speed Control
B - 1 HP SCR Drive System, 120 V 1 PH., 0-70 RPM
C - ROM 1700 Measurer 1/8” to 2“ Diameter Capacity
D - Feet & Inch Mechanical Counter
E - Heavy Duty Mobile Frame with Floor Locks
F - 2 Swivel Wheels for Maneuverability
G - Operator Safety Foot Switch
H - 5C-6HD Collapsible Coiler 20” ID x 30” OD x 5” Wide
Products Overview
Mini Penthouse does not take up a lot of space and hence, it is ideal for a small industrial set-up. It successfully and easily pulls the material from reel racks, reel roller platforms or a pay-out cart. You can also use it with an extrusion line when equipped with a dancer or tension control. Other key aspects regarding this product is its variable speed control, operator safety foot switch, feet & inch mechanical counter, swivel wheels for promoting manoeuvrability and heavy duty mobile frame with floor locks.
