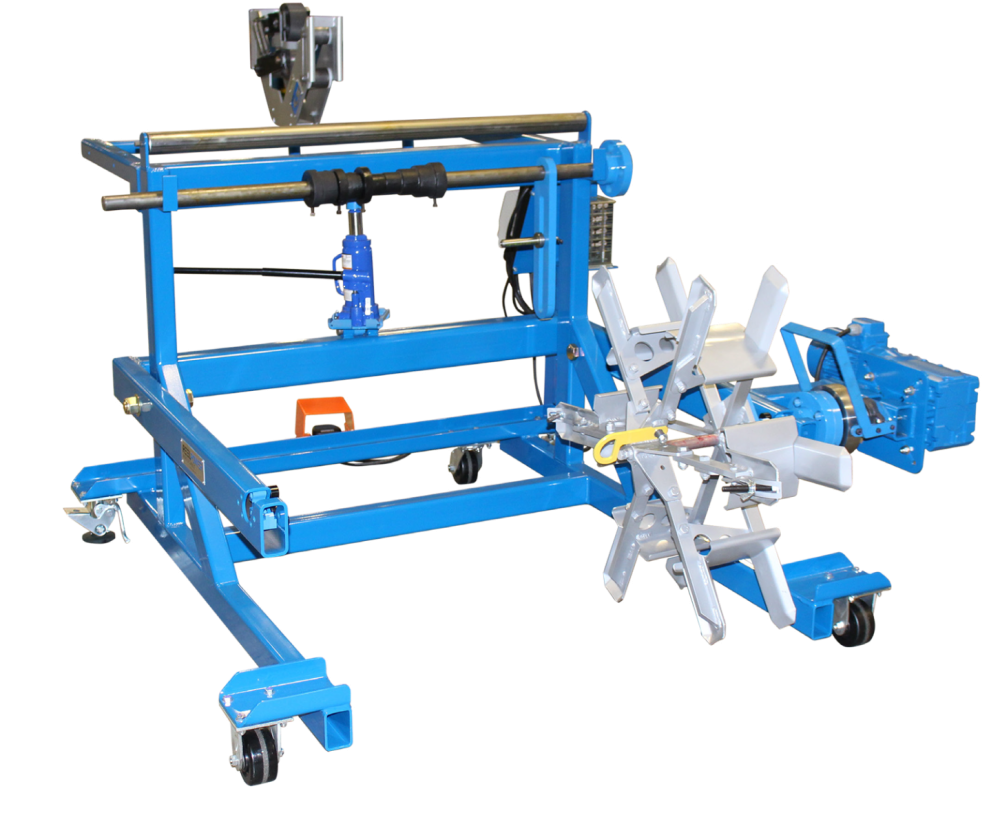

WKT3 Coiling and Spooling Take Up

Coiling and Spooling Take Up
WKT3

The WKT Series Spooling and Coiling equipment is perfect for light to moderate duty applications. Take-ups are standard with a 1 3/8” O.D. shaft with bushings for 2”, 21/2” and 3” arbor holes.

Features & Benefits
• Updated AC Drive package provides improved performance over DC drives
• UL and CE Rated – motor/electric
maneuverable!
• Integrated Forward/Reverse standard
• Increased torque
• 0-35 / 0-70 RPM setting can be modified in field!
• Improved Slide Drive
• 1 HP AC Vector Drive, 0-70 RPM, (120 Volt- 1 Phase)
• Forward and Reverse
• Model 1700SP p/n 0207-384 Heavy-duty measurer for material from 1/8” to 2” diameter with Knurled wheels
• Model 5C-6-0033 Collapsible Coiler with for completed coils measuring 5” wide x 20” I.D. x 30” OD
• Coiler adaptor p/n 1034-121
• Manual hydraulic lift jack
• Operator safety footswitch for engaging the drive by depressing the foot pedal
• Drive attached to the frame of the machine
• 1 3/8” diameter reel shaft with bearings
• One set bushing for 2”, 2 ½” and 3” arbor holes to include a step bushing of the same size
• Meter swing arm p/n 0207-919
• Provided with rear swivel casters and floor locks
• Wire roller and push handle
• Safety shaft latch
• Perpendicular wheels
• Painted Blue

Take-Up Options
• Collapsible Coilers
• Slide Traverse
• 2” and 4” Capacity
• Paralleling Reels
• ElectroLift
• Shaftless & Custom Designs
• Automatic Levelwind - Custom
• Safety Guarding
• 0-35 RPM / 0-70 RPM

Accommodates reels up to 3,000 lb. capacity, between 20” to 54” OD, and up to 34” wide• MODEL 1700SP MEASURER ON METER SWING ARM
• NEW SLIDE DRIVE
• FORWARD/ REVERSE STANDARD
• 5C-6AL - 0012 - ALUMINUM COILER
