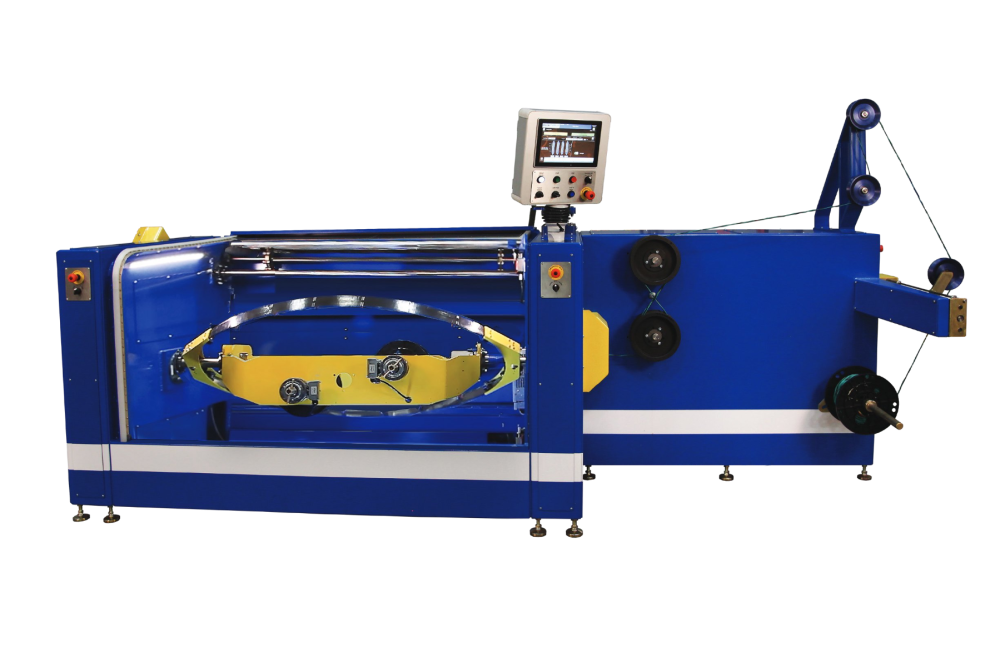

Double Twist Twinner/Quadder - TD-1930

Features
• Ideal for twisting or quadding wires quickly and efficiently into twisted pairs.
• Designed to operate with minimal operator attention or experience required.

SKU
Double Twist Twinner/Quadder - TD-1930

Please call

    Double Twist Twinner/Quadder - TD-1930
    Specifications
  • • Ideal for twisting or quadding wires quickly and efficiently into twisted pairs.
  • • Designed to operate with minimal operator attention or experience required.
  • • Heavy-duty cabinet offers reduced vibration.
  • • Carbon fiber bow with ceramic wire eyelet guides.
  • • Electromagnetic individual cradle payoff brakes.
  • • Precision ball screw level-wind traverse.
  • • Adjustable “Length of Lay” while running.
  • • Predetermined stop-to-length measurer halts machine once a preset value has been reached.
  • • Fully enclosed timing belt cover at the rear of the machine with easy maintenance, and external bearing lubrication ports.
  • • Push-button controlled, retractable metal guard with safety interlock allowing over-lead loading of the cradle.
  • • Larger bow and cradle guides available.
  • • Indicator lights.
  • • 3/4“ and 1 1/4” Take-up shaft with drive arm and quick lock collar.
  • • 3 HP VFD Bow Drive, 0 to 338 RPM, bow speed is electronically adjustable on the “fly”.
  • • One (1) set of 1 1/4” diameter twinning and one (1) set of 3/4” quadding shafts.
  • • Rate controlled acceleration gives a smooth transition during any speed increase.
  • • Detailed parts, operation, electrical, and maintenance manuals are included

  • HMI Color Display includes:
  • • On/Off Indicating Lights
  • • Counter By-pass
  • • Full Operator Control
  • • Payoff Tension Control
  • • Length of Lay Control
  • • Capstan Speed
  • • Take-up Tension

  • Take-up
  • • 30” Maximum diameter
  • • 15” Maximum width
  • • 1 1/4” Arbor hole
  • • 350 lbs. Maximum weight

  • Double Twist Quadding
  • • 19” Maximum diameter
  • • 2” to 6” Width
  • • 1 1/4” Arbor hole
  • • 150 lbs. Maximum weight
  • • 28 to 16 AWG wire size
  • • 0 to 2,000 Twists per minute

  • Overall Dimensions
  • • 76” H x 65” D x 173” L x 1,500 lbs.
  • • Utility requirement: 460V/60 Hz/3 Ph

  • Set of 5 Plug-in Take-up Shafts
    Includes five (5) 1/4” Plug-in Take-up Shafts, with drive arm and quick lock collar. Includes all 18" x .75", 1", 1.25", 1.38", and 1.5" diameters.
    Payoff (In Cradle) Double Twist Twinning
  • • 19” Maximum diameter
  • • 2” to 13” Maximum width
  • • 1 1/4” Arbor hole
  • • 150 lbs. Maximum weight
  • • 30 to 14 AWG wire size
  • • 0 to 2,000 Twists per minute

  • Single Twist Twinning
  • • 24” Maximum diameter
  • • 2” to 13” Maximum width
  • • 1 1/4” Arbor hole
  • • 200 lbs. Maximum weight
  • • 28 to 12 AWG wire size
  • • 0 to 1,000 Twists per minute

  • Additional Features:
  • • Vector Frequency Bow Drives - Offers 338 RPM, full load torque speed range and optimum twist controllability. (i.e. Maximum speed 400 FPM allows minimum reproducible speeds to 1.5 FPM). Drives are digitally linked to one another.
