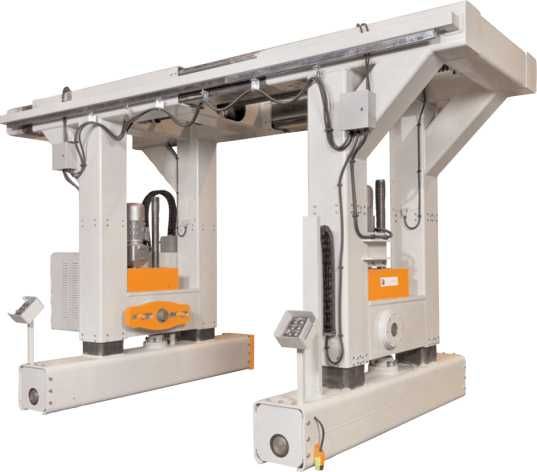

Gantry Takeup & Payoff
Traversing Frame Take-Ups and Payoffs are someof the most advanced on the market today, now with capacities up to 250,000 pounds.
SKU
Gantry Takeup & Payoff 1
Product Details
Traversing Frame Take-Ups and Payoffs are someof the most advanced on the market today, now with capacities up to 250,000 pounds.
These units offer such benefits as:
- True walk-thru capability and unlimited lateral movement for reel handling.
- The units traverse the entire reel in front of the line, creating an optimum layer wound package.
- The telescoping portal design conforms to the size of reel to minimize floor space requirements.
- Main drive systems are engineered to customers’ specifications and are complemented with operator Touchscreen Interface.Overhead beam units are also available.
More Information
| Enable Request for Recalibration Service | No |
|---|
Products Overview
Zero Material Fleeting Angle:
- Superior level-wind capabilities.
- Tandem operation allows for continuous line
- operation and offers faster and more convenient loading.
- Minimized line lengths even with large,non-flexible material.
- Processes round, flat and rectangular products.
Superior controls:
- Standard controls fit all applications of dancer, speed, or torque controls with selectable diameter and line speed compensation.
- Color touchscreen on take-up and payoff allows complete operator control and maintenance access
- Independent load control stations for convenient load access
Telescoping Frame Confroms to the Actual Reel Size:
- Offers true roll thru capabilities
- Increased productivity
- Improved bolt-on labor cone design
Models/Options
Options:
Overhead beam design
Auto reel loading
Zero fleeding angle payoffs
