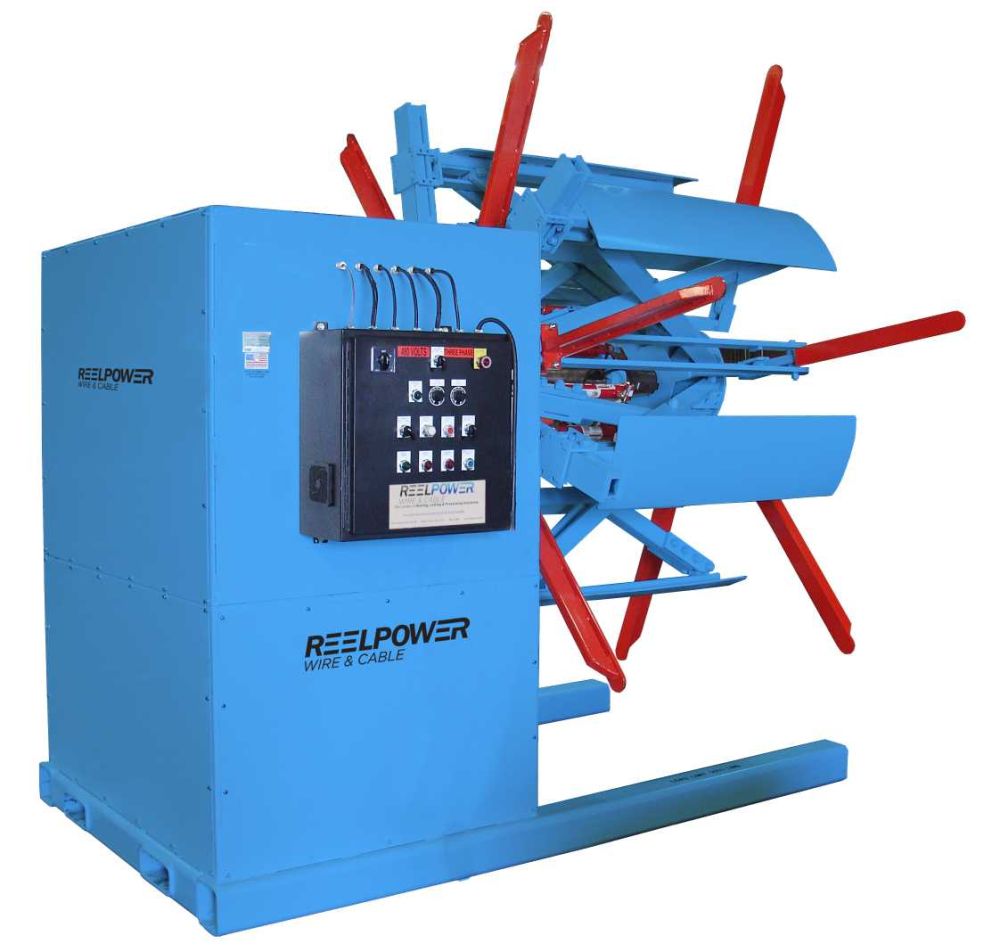

Heavy Duty In-Line Coiling Machine - PC 3000

PC3000 Heavy Duty In-Line Coiling Machine. INCLUDES: • Coil capacities, manually adjustable expand collapse for 50”, 60”, 70” and 84” ID coils on 2” increments x 113” (Specify ID diameters required if different than listed) O.D. x manually adjustable width up to 48” wide x up to 3,000 lbs. load capacity. Note: 84” ID will be a separate set of bolt on ID pads and will still have a 113” OD • Low profile, heavy duty structural steel frame construction with bolt-down floor flanges. • Electric/hydraulic activated coiler expanding/collapsing feature. • 5 HP AC Vector Variable Speed and Torque Drive System, 0 to approximately 5 RPM • 480 VAC three phase power required. • Zero Speed Holding • Spring applied, electric release holding brake. Engages on power loss or e-stop. • Potentiometer for Torque Control, Maximum speed potentiometer, and Forward/Reverse feature available on either side or both of coiler • Pushbutton, hydraulic powered, coiler expand collapse • Extended and reinforced I.D. pads for a rounder coil to prevent crimping. • Paint: RP Blue with Safety Orange arms. • Forklift base • Manually adjustable tail clamp to allow operator to manually adjust tail clamp alignment to the pipe tail and secure tail for strapping. • Pipe bung quick release pin. Includes holes located at each collapsing arm to allow operator to easily attach pipe bung tail to coiler.
