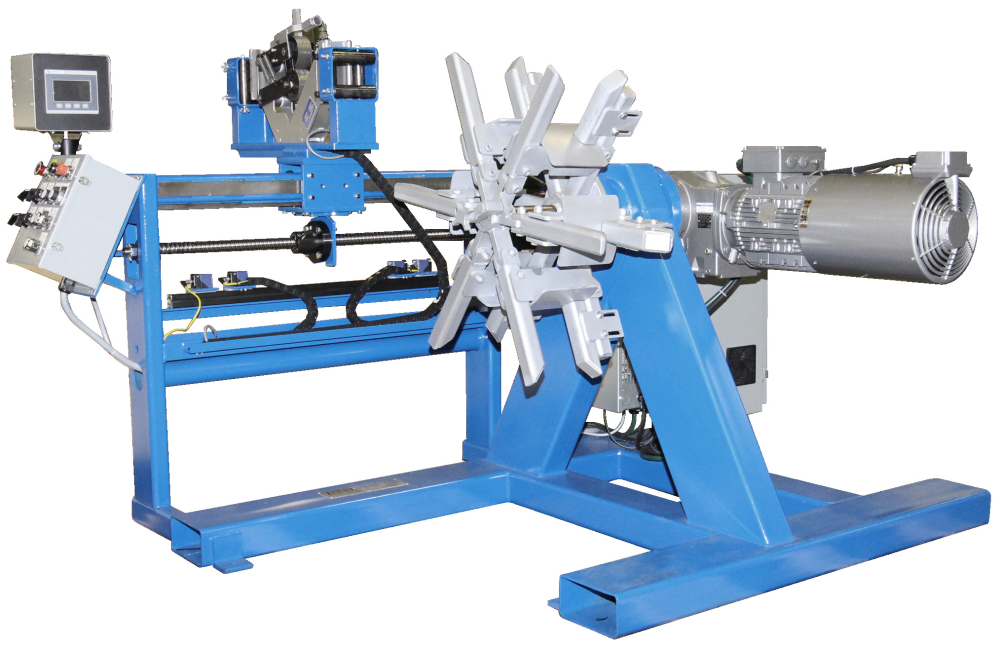

Heavy-duty Coiling Machine

Heavy-duty coiling machine for heavy material

  • Great for scrap-coiling applications
  • Featured for wire rope usage and bare wire

The model SP-HDHSS757 comes with 7.5 HP AC Drive, 480VAC- 3 Phase (voltage can be customized), 0-70 RPM.

Maximum coil weight of 500 lbs. System is capable of pulling from approximately 5,000
lbs. supply reels.



SKU
SP-HDHSS757
Part Number:
SP-HDHSS757

Please call

Heavy-duty coiling machine for heavy material

  • Great for scrap-coiling applications
  • Featured for wire rope usage and bare wire

The model SP-HDHSS757 comes with 7.5 HP AC Drive, 480VAC- 3 Phase (voltage can be customized), 0-70 RPM.

Maximum coil weight of 500 lbs. System is capable of pulling from approximately 5,000 lbs. supply reels.

Features:
  • Heavy duty steel frame construction
  • Extended base for stability during coiling with bolt down tabs
  • Integrally mounted operator control panel with:
    • On/Off Power Switch
    • Speed Control Potentiometer
    • Operator Safety Footswitch
  • 7.5 HP AC Variable Speed Drive System, 0-70 RPM capable of pulling from supply reels weighing up to approximately 5,000 lbs.
  • Dynamic Braking
  • Zero speed holding to prevent uncoiling when the operator stops the machine.
  • Spring applied holding brake to prevent load from rotating during power loss.
  • Paint: Reel Power Blue or custom color can be specified
  • UL508A listed
  • Automatic AC ballscrew traverse system for up to 1” diameter material. Inlcudes hardened rollers and guides to automatically traverse material from left to right/right to left
  • Electronic stop to length digital display to allow operator to program slow down and stop length. Also allows for infield calibration of measuring head.
ONE YEAR WARRANTY
