Maximum Duty Custom Powered Cable Reel Stands

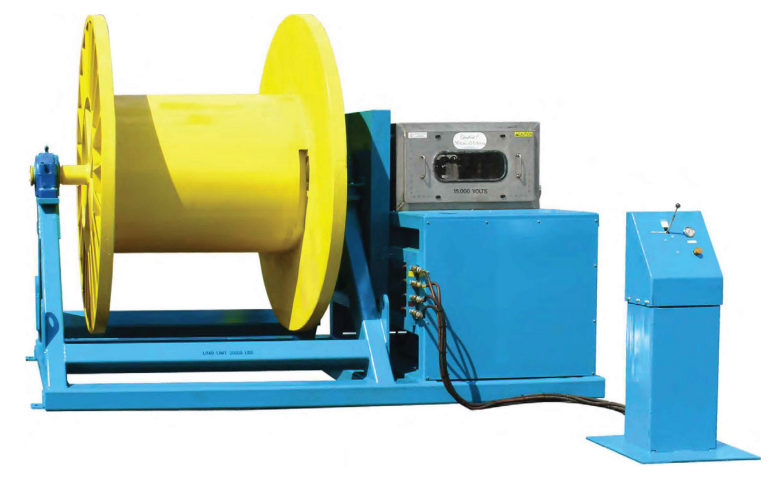

Shown below is our Model SP-CRS108 Powered Cable Reel Stand for reels 108” Dia. x 80” wide x 25,000 Lbs. load capacity. This machine was designed for retracting cords in a Marine Application. It is equipped with a 15,000 Volt Slip Ring Assembly, Self Contained Diesel Engine Powered Unit. It also has a Tension Controlled Drive System.

SKU
SP-CRS108
Part Number:
SP-CRS108

Please call

MODEL SP-CRS108 POWERED CABLE REEL STAND

Includes:

  • Heavy duty structural steel frame with lifting eyes and bolt-down flanges
  • Reel shaft with lifting lugs, dual drive pins, and reel locking collar
  • Heavy duty reel (RRP open sided construction) with 7 5/8” arbor hole, 96” O.D. x 72” inside traverse, 48” drum with special drum access for cable ties to center shaft. Capable of holding over 4,000 feet of 2.64 diameter SHD-GC Cable.
  • 5 pole (3 conductor with two grounds)
  • Marine environment package
  • Inspection window
    16 HP Diesel/Hydraulic Variable Speed Reel Drive, 0-15
    RPM, (Capable of 150 FPM at a 48” I.D.)
  • NEMA 4X Electrical Controls
  • Outdoor environment package includes primer, enamel paint, and stainless steel and plated hardware
  • Forward/Reverse Manual Hydraulic Speed Control
  • Main System Relief with gauge
  • Tension Control Reliefs with gauges
