  • NK4-035 Replacement Parts - image

NK4-035 Replacement Parts

Need help finding your part Model/Year?
SKU
NK4-035-Replacement-Parts
Part Number:
NK4-035-Replacement-Parts
Grouped product items
Part NamePriceQty
1 - FRAME WELDMENT ASSEMBLY P/N 100021072*
$5,735.08
2 - LIFT ASSEMBLY P/N 1055-136*
$5,383.45
3 - SHAFT NK6, 2" OD ASSEMBLY P/N 1052-025*
$1,895.39
4 - SHAFT NK6, 1.375" OD ASSEMBLY P/N 1052-026*
$2,071.34
5 - HYDRAULIC RESERVOIR, HRES-020A CUSTOM 10 GALLON ROM P/N 12985-01
$506.55
6 - MOTOR, CEM 3313T BALDOR, 10HP, 1750RPM, 480/230/208VAC, 3 PH, ODP, 215TC P/N 13800-437*
$2,224.20
7 - HYD ADAPTER P/N 12923-01*
$157.50
8 - HYDRAULIC PUMP P/N 12980-25*
$557.20
9 - LIGHT DUTY SLIDE TRAVERSE ASSEMBLY P/N 1055-160*
$1,955.79
10 - PLASTIC PORTABLE TOOLBOX 7-13/64" OVERALL HEIGHT, 16" OVERALL WIDTH, 8-3/16" OVERALL DEPTH P/N 16640-04*
$42.44
11 - HYD FILTER P/N 12925-22*
$59.84
12 - HYDRAULIC FILLER AB-1000-3 P/N 12925-35*
$59.12
13 - VALVE 1/2 NPT PORT P/N 16910-210*
$85.41
14 - Replacement kit for Hydraulic Handles — VALVE, SDCF755M124LF1 BRAND HYDRAULICS P/N 16910-212*
$569.78
15 - Replacement Foot Guard P/N 0110-028*
$67.10
16 - Replacement Foot Switch P/N 12285-01*
$167.48
17 - CASTER, 71-06301-379-1, 6 X 3 SWIVEL P/N 10925-48*
$238.34
18 - Replacement Floor lock P/N 12250-02*
$62.94
19 - VALVE MOUNT BODY TRQ 30-35 P/N 16910-205*
$85.52
20 - MAIN ENCLOSURE P/N 100014080*
$5,606.60
21 - LINE MOUNT VALVE BODY P/N 16910-176*
$131.61
22 - HYD MOTOR, C/L 104-1228-006 2000 SERIES, 2 BOLT SAE A P/N 12965-03*
$1,400.48
23 - DRIVE HUB WELDMENT P/N 1056-023*
$238.89
Download Brochure
Add to Wish List Add to Compare
Product Details

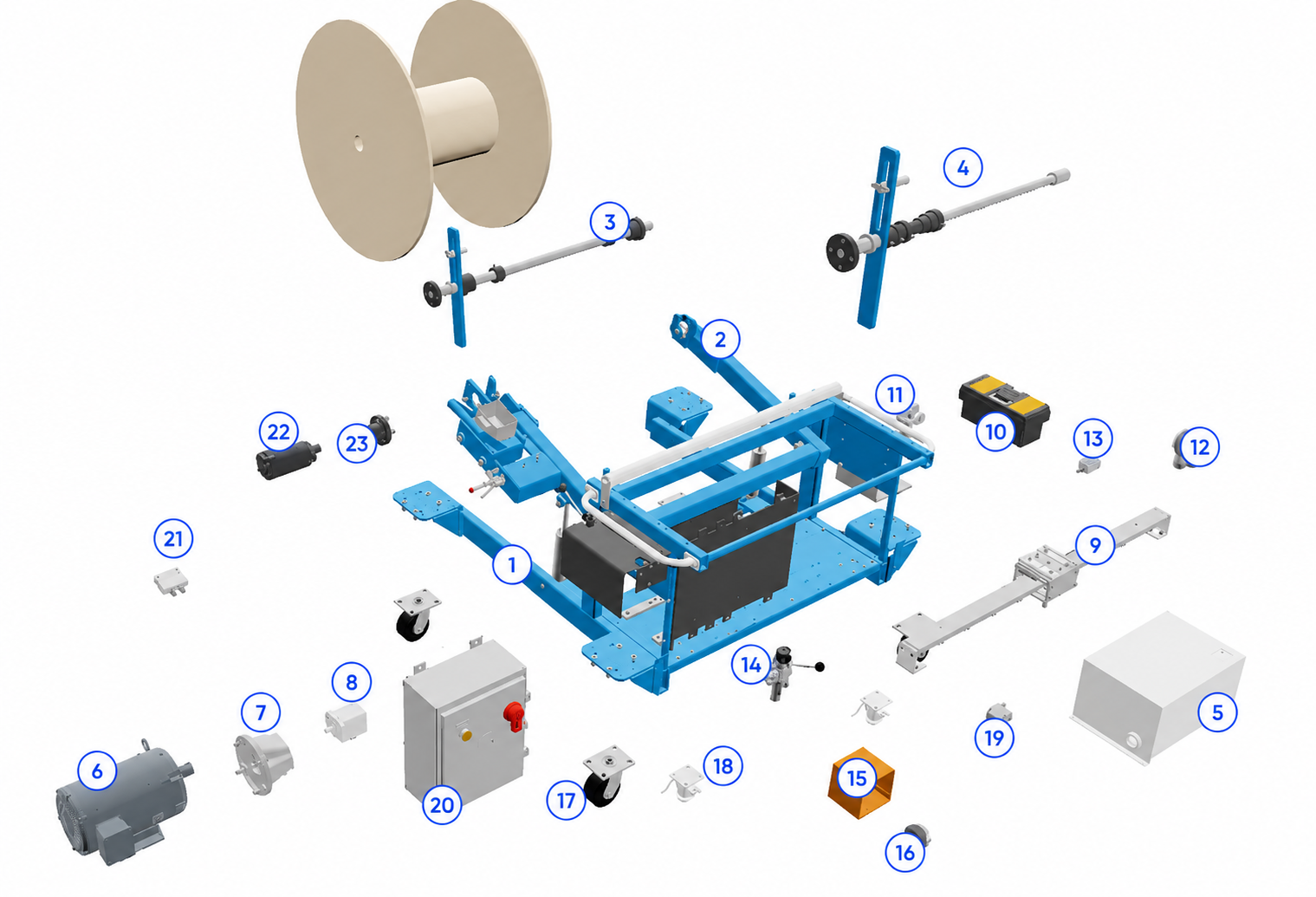

NK4 Coiling Machine — Exploded Parts View
