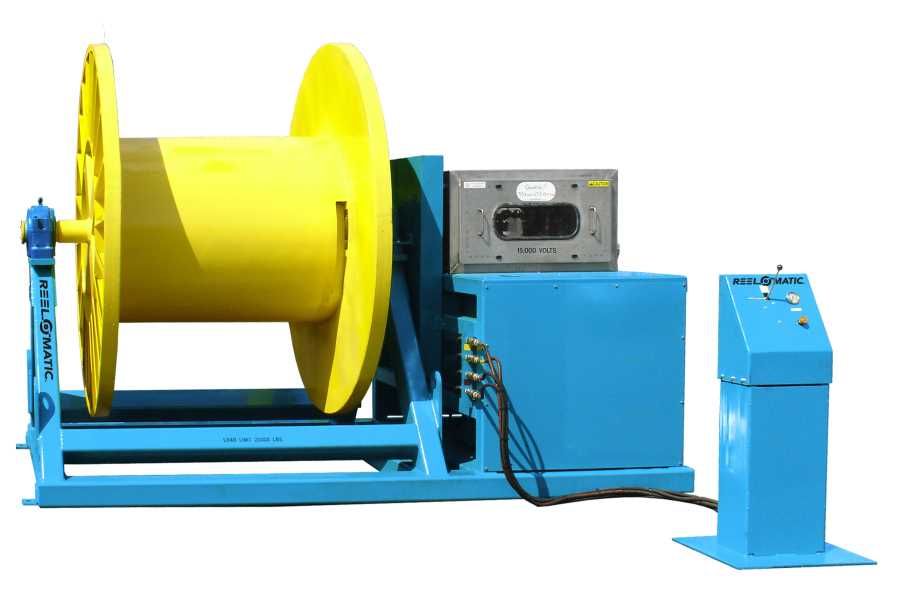

Shown Below is our Model SP-CRS108 Powered Cable Reel Stand for reels 108"Dia x 80" wide x 25,000lbs load capacity. This machine was designed for retracting cords in a Marine Application. It is equipped with a 15,000 Volt Slip Ring Assembly, Self Contained Diesel Engine Powered Unit. It also has a Tension Controlled Drive System.
INCLUDES:
Heavy duty structural steel frame with lifting eyes and bolt-down flanges
Reel shaft with lifting lugs, dual drive pins, and reel locking collar
Heavy duty reel (RRP open sided construction) with 7 5/8” arbor hole, 96” O.D. x 72” inside traverse, 48” drum with special drum access for cable ties to center shaft. Capable of holding over 4,000 feet of 2.64” diameter SHD-GC Cable.
Shown Below is our Model SP-CRS108 Powered Cable Reel Stand for reels 108"Dia x 80" wide x 25,000lbs load capacity. This machine was designed for retracting cords in a Marine Application. It is equipped with a 15,000 Volt Slip Ring Assembly, Self Contained Diesel Engine Powered Unit. It also has a Tension Controlled Drive System.
15,000 Volt, 300 Amp slip ring assembly Includes:
5 pole (3 conductor with two grounds)
Marine environment package
Inspection window
16 HP Diesel/Hydraulic Variable Speed Reel Drive, 0-15 RPM, (Capable of 150 FPM at a 48” I.D.) Includes:
NEMA 4X Electrical Controls
Outdoor environment package includes primer, enamel paint, and stainless steel and plated hardware
Forward/Reverse Manual Hydraulic Speed Control
Main System Relief with gauge
Tension Control Reliefs with gauges
More Information
More Information
Enable Request for Recalibration Service
No
Products Overview
15,000 Volt, 300 Amp slip ring assembly Includes:
5 pole (3 conductor with two grounds)
Marine environment package
Inspection window
16 HP Diesel/Hydraulic Variable Speed Reel Drive, 0-15 RPM, (Capable of 150 FPM at a 48” I.D.) Includes:
NEMA 4X Electrical Controls
Outdoor environment package includes primer, enamel paint, and stainless steel and plated hardware
Forward/Reverse Manual Hydraulic Speed Control
Main System Relief with gauge
Tension Control Reliefs with gauges
Models/Options
15,000 Volt, 300 Amp slip ring assembly Includes:
5 pole (3 conductor with two grounds)
Marine environment package
Inspection window
16 HP Diesel/Hydraulic Variable Speed Reel Drive, 0-15 RPM, (Capable of 150 FPM at a 48” I.D.) Includes:
NEMA 4X Electrical Controls
Outdoor environment package includes primer, enamel paint, and stainless steel and plated hardware
