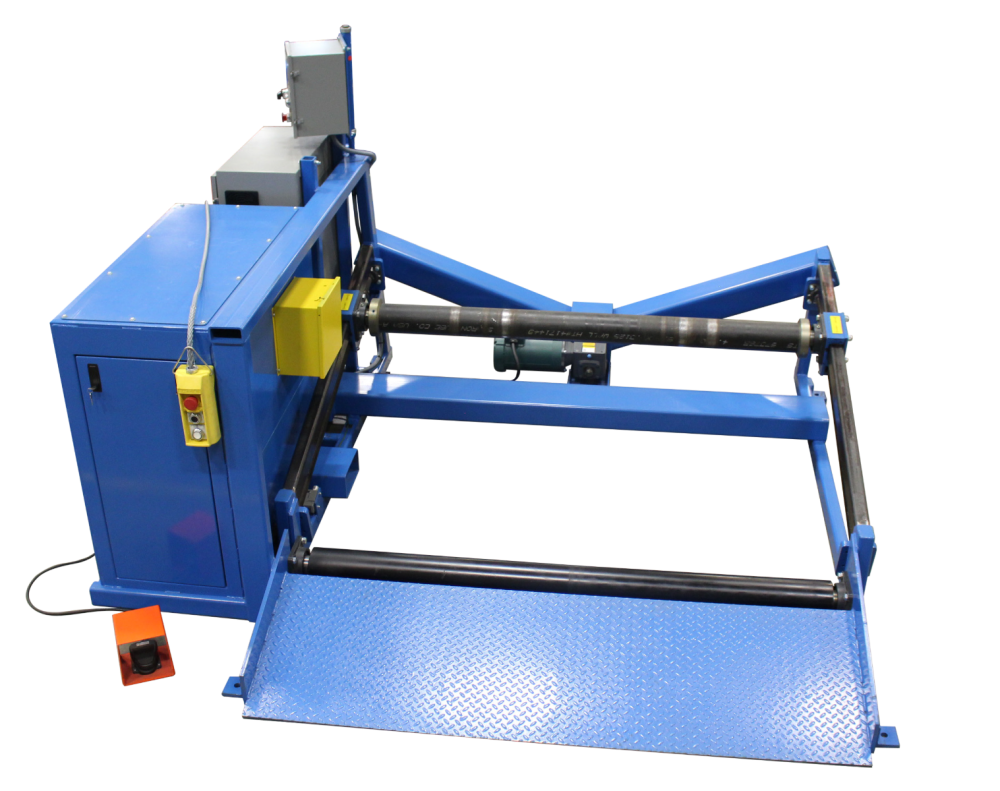

RIM DRIVE SHAFTLESS TAKE-UPS

Fast, Efficient and Economical - PMAC “SAVES ENERGY”

OUR NEW RD-10 PMSM - PERMANENT MAGNET SYNCHRONOS AC MOTOR DELIVERS
• Smoother acceleration and deceleration - “no popping”, reduces risk of damaging strands
• Torque output is constant through all speed ranges
• Operates cooler than induction motors
• Lower ambient noise level than mechanically driven units!
• Footswitch can be “jogged” without tripping the drive - allowing for easy packaging of material
• Dynamic braking of reel, reducing “over spin”
• Lower maintenance, higher performance reliability - more “up” time, more production!
• No motor “slipping” occurrences
• Requires less energy to operate
• Schneider AC VFD Drive

SKU
VH678

Please call

OUR NEW RD-10 PMSM - PERMANENT MAGNET SYNCHRONOS AC MOTOR DELIVERS
• Smoother acceleration and deceleration - “no popping”, reduces risk of damaging strands
• Torque output is constant through all speed ranges
• Operates cooler than induction motors
• Lower ambient noise level than mechanically driven units!
• Footswitch can be “jogged” without tripping the drive - allowing for easy packaging of material
• Dynamic braking of reel, reducing “over spin”
• Lower maintenance, higher performance reliability - more “up” time, more production!
• No motor “slipping” occurrences
• Requires less energy to operate
• Schneider AC VFD Drive


Choice of Drives Suited to Your Application
• 10HP to 25HP
• Yaskawa & Schneider AC Vector VFD Drives

Standard Reel Capacities

• RD5 16” TO 84” diameter x 52” wide x 5,000lbs
• RD10 16” TO 108” diameter x 60” wide x 10,000lbs
• RD15 16” TO 120” diameter x 72” wide x 15,000lbs


Take-Up Options
• Levelwind
• Coiling Attachment
• Powered and Non-Powered Mobility Feature
• Predetermined Stop-to-Length Counters
• Coiler Guard

Other Features
• SMALLER FOOTPRINT- SAVES 31” OF FLOOR SPACE
• LOCKABLE REMOVEABLE “FLIP LATCH” ACCESS PANELS
• FAST/SLOW REMOTE PENDANT CONTROL
• OPTIONAL COILING ATTACHMENT
• UL CERTIFIED PANEL BOX

OUR NEW RD-10 PMAC - PERMANENT MAGNET AC MOTOR DELIVERS
• Smoother acceleration and deceleration - “no popping”, reduces risk of damaging strands
• Torque output is constant through all speed ranges
• Operates cooler than induction motors
• Lower ambient noise level than mechanically driven units!
• Footswitch can be “jogged” without tripping the drive - allowing for easy packaging of material
• Dynamic braking of reel, reducing “over spin”
• Lower maintenance, higher performance reliability - more “up” time, more production!
• No motor “slipping” occurrences
• Requires less energy to operate


Choice of Drives Suited to Your Application
• 10HP to 25HP
• Yaskawa & Schneider AC Vector VFD Drives

Standard Reel Capacities
• RD5 16” TO 84” diameter x 52” wide x 5,000lbs
• RD10 16” TO 108” diameter x 60” wide x 10,000lbs
• RD15 16” TO 120” diameter x 72” wide x 15,000lbs


Take-Up Options
• Levelwind
• Coiling Attachment
• Powered and Non-Powered Mobility Feature
• Predetermined Stop-to-Length Counters
• Coiler Guard

Other Features
• SMALLER FOOTPRINT- SAVES 31” OF FLOOR SPACE
• LOCKABLE REMOVEABLE “FLIP
• LATCH” ACCESS PANELS
• FAST/SLOW REMOTE PENDANT CONTROL
• OPTIONAL COILING ATTACHMENT
• UL CERTIFIED PANEL BOX
Choice of Drives Suited to Your Application • 10HP to 25HP • Yaskawa & Schneider AC Vector VFD Drives
