Reel Trailers RT

Power sources, such as gasoline or diesel engines, when incorporated in our custom trailer allow you to deliver the trailer to your location. The trailer may then be used as an interdependently powered Take-up or Pay-out.

SKU
RT10
Part Number:
RT10
Qty On Hand:
1

Please call

Power sources, such as gasoline or diesel engines, when incorporated in our custom trailer allow you to deliver the trailer to your location. The trailer may then be used as an interdependently powered Take-up or Pay-out.

FEATURES:

  • Reel Capacity 96” OD, 56” Wide
  • Load Capacity 10,000 lb.
  • Self-Loading Manual Hydraulic Lift
  • Electric Trailer Brakes And ICC Lighting
  • Safety Chains And Breakaway Switch

STANDARD FEATURES:

  • Main Frame - Structural Tubing
  • Reel Shaft
  • Adjustable Pintle Eye Hitch
  • Independent Manually Operated Hydraulic System
  • Positive Reel Lock For Transport Position
  • Safety Chains
  • Lighting Package
  • Self Loading Feature
  • Dual Hand Pumps For Faster Loading

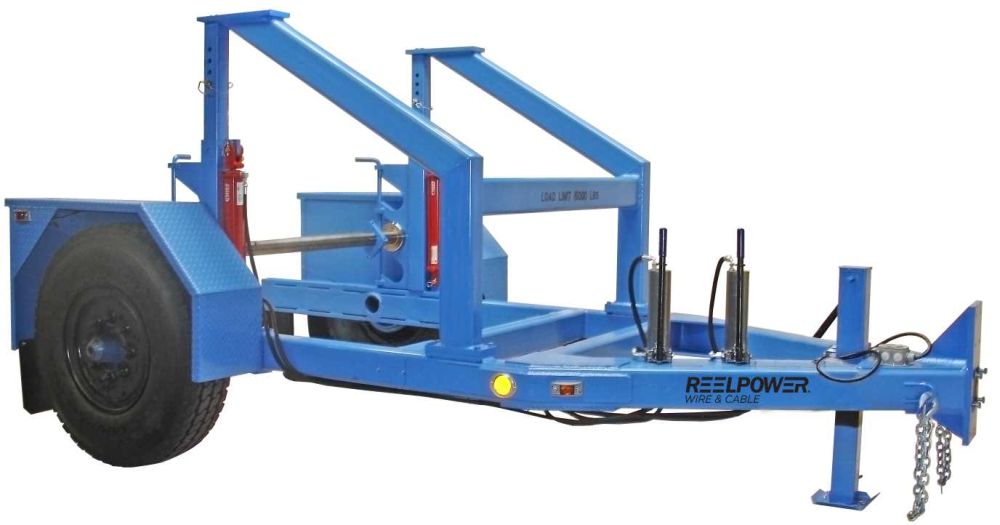

Reel Trailers - (RT) are specifically designed for in-field delivery of wire spools to the job site for fast and easy payout or take up of wire. The reel trailer is powered by a motor, and your choice of either gasoline or diesel fuel driven engine is available. The trailer is ergonomically designed to ensure operator safety as well as being easy to operate. It has an independent manually operated hydraulic system, a positive reel lock for transport position and safety chains. Customization of the unit to your required specifications is available upon request. The trailer can be used as an independently powered Take-Up or Pay-Out at the job site.

OPTIONS:

  • Variable Pulling Tension
  • Manual Hydraulic Reel Lift
  • Powered Hydraulic Reel Lift
  • Self Propelled
  • On-Site Auxiliary Power Generators
  • Adjustable Tow Hitches And Loading Wheels
  • Landing Wheel (Retractable)
  • Wheel Brakes (Wheel, Electric, Hydraulic, Surge)
  • Tension Brakes
  • Hydraulic Drive Systems
  • Engines (Diesel, Gasoline, Propane, or Electric)
  • Stabilizing Jacks
  • Hydraulic Steering
  • Custom Lighting Packages
