RR10

$0.00

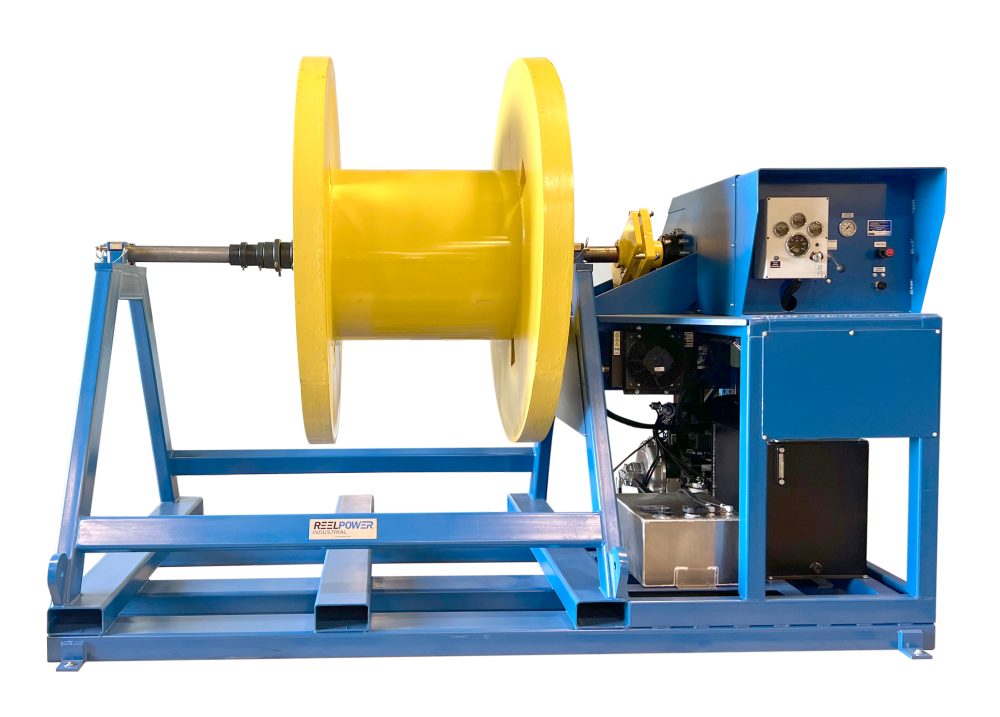

Powered Re-Reeving Machine: for reels up to 96” O.D. x 60” wide x 10,000 lbs. load capacity.

FEATURES:

  • 96” Dia X 60” Wide X 10,000 lb.
  • 3” SS Shaft 0-8 Rpm 100,000 in/lb. Torque
  • 22HP Diesel Engine
  • Fully Enclosed Controls
  • Forward/ Reverse Control with Tension Regulator
  • Outdoor Environment Package
    • With Rain Shields and Stainless Hardware where applicable
SKU
RR10-012-001
Part Number:
RR10-012-001
$0.00
INCLUDES:
  • Heavy duty structural steel main frame construction with bolt down floor flanges, forklift base and lift eyes
  • 3” dia. “drop-in” Steel reel shaft with bronze bearing assemblies, reel locking clamp and loading bar
  • Bushings for 4” and 5” arbor holes
  • Drive arm with dual adjustable drive pins and integral loading bar
  • Safety shaft latches
  • 22 HP Electric start Kubota diesel powered hydraulic system to provide tensioned controlled pay-out and takeup operations. Capable of providing up to 100,000 in/lb. torque, 0 to approximately 8 RPM.
  • Manual hand valve with spring return to center operation for speed and direction control
  • Hand operated pressure relief valve with gauge to adjust torque
OUTDOOR ENVIRONMENT PACKAGE INCLUDES:
  • Primer with two coats of enamel paint
  • Stainless or plated hardware
  • Power unit rain shield
