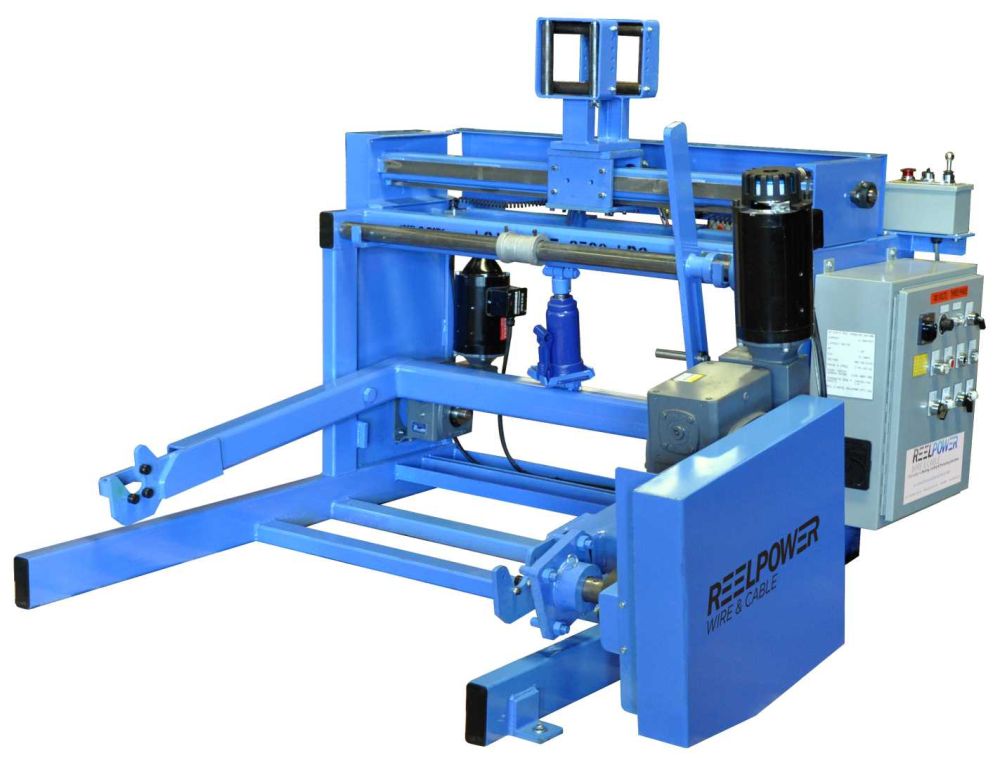

RS Take-Up & Pay-Out Series

Standard Reel Capacities:

TAKE-UP

  • RST3N 30” to 60” dia., 34” wide X 3,000 lbs.
  • RST4N 30” to 60” dia., 36” wide X 4,000 lbs.
  • RST5 36” to 72” dia., 45” wide X 5,000 lbs.
SKU
RS Take-Up & Pay-Out Series1

Please call

Standard Reel Capacities:

TAKE-UP

  • RST3N 30” to 60” dia., 34” wide X 3,000 lbs.
  • RST4N 30” to 60” dia., 36” wide X 4,000 lbs.
  • RST5 36” to 72” dia., 45” wide X 5,000 lbs.



Standard Reel Capacities:
TAKE-UP

RST3N 30” to 60” dia., 34” wide X 3,000 lbs.
RST4N 30” to 60” dia., 36” wide X 4,000 lbs.
RST5 36” to 72” dia., 45” wide X 5,000 lbs.

PAY-OUT

RSP 20” to 48” dia., 36” wide X 2,500 lbs.
RSP3N 20” to 54” dia., 54” wide X 3,000 lbs.
RSP4N 30” to 60” dia., 38” wide X 4,000 lbs.
RSP5 38” to 72” dia., 48” wide X 5,000 lbs.

1HP to 3HP mechanical, 3HP to 20HP hydraulic
and 1HP to 5HP SCR drives are available

Options:

  • Manual Slide Traverse
  • Slide Drive
  • Coiling Attachments
  • Manual Shaftless Feature
  • Coiler Guards
  • Integral Cutter
  • Tension Brakes
  • Dancer Speed Control
  • Measuring Meter
  • Soft Starts
  • Automatic Levelwind
  • ElectroLift (Electric/Hydraulic Reel Lifting)
  • Predetermined and Stop-to-Length Counter - ESTL
  • Take-Up Tension Control
  • Custom Options as Required
