SINGLE TSPO

SINGLE TSPO

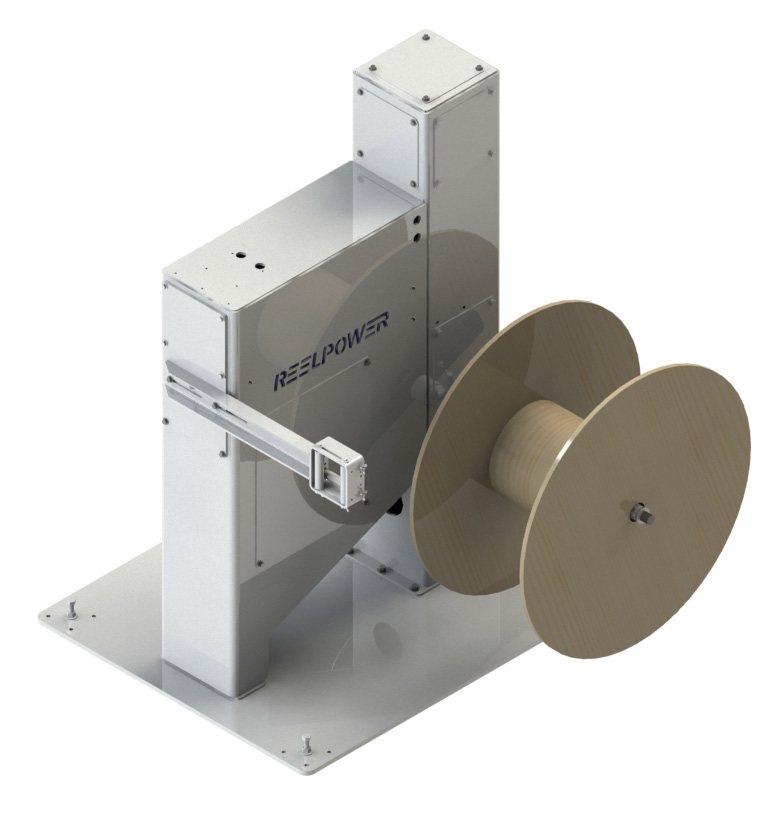

Single Shafted Tower Style Pay Off

Model TSPO is a light weight, economical pay out machine that is ideal for 30-inch spools up to 15 inches wide and weighing 150 lb. It comes complete with your choice of manual electromagnetic, disk or leather strap tension control and adjustable product guide box.

The small footprint means this unit won’t take up much shop space – order with casters to for portability, use leveling feet or bolt it to the floor. Combine this unit with the Tower Style Take Up unit for the ultimate, flexible and foolproof system to meet your reeling needs.

Features & Benefits
• Near zero maintenance
• Simple & easy to use
• Minimum spool height for easy loading
• Manual tension control adjustment
• Plug in style shaft adapter
• 34-40 in. line height
• Adjustable guide rollers and guide box position
• Portable with casters option
• Can be bolted to the floor permanently
• Heavy gauge powder coated steel construction

Specs
• 2 in. product OD/width
• 150 lb. capacity per shaft
• Accepts Ø 30” x 15”W spools

Utility Requirements
• 120/230/480 VAC, 1PH power required for electromagnetic brake control option

Approximate Weight and Dimensions
• 42”W x 36”D x 55.1” - 61”H
• Actual Footprint: 42”W x 36”D
• 632 lb.

Tower Style Pay Out
• ELECTRO MAGNETIC TENSION BRAKE
• 10” MECHANICAL DISK TENSION BRAKE
• LEATHER STRAP DRAG TENSION BRAKE
