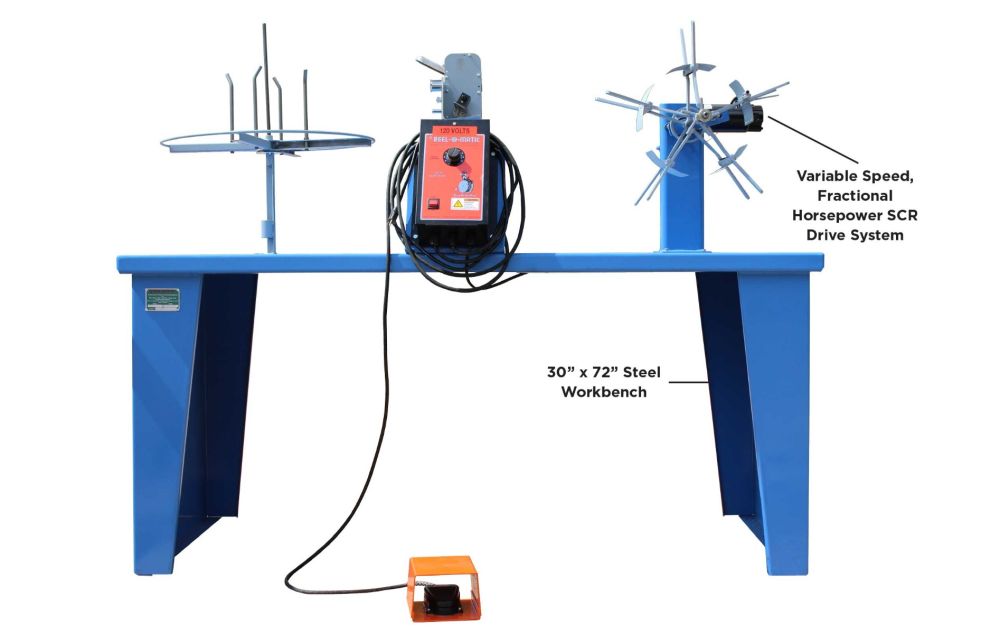

Table Mounted Small Measuring and Coiling System p/n SPH/2-007*

$8,098.00
SKU
SPH2-007-001
Part Number:
SPH2-007-001
Shipping by Freight ONLY
Additional Fee for Crating/Pallet/Skid: $300.00
$8,098.00
  • ¼ HP Fractional variable speed drive assembly, 0-90 RPM, 120V Single Phase
  • Control Enclosure with Power on/off, speed control, and power cord
  • Operator safety foot switch
  • All-steel, fully welded worktable 30” x 72” to accommodate coiler, meter and turntable.
  • 24” diameter turntable four adjustable I.D. pins to accommodate coils and center post for spools.
  • Accommodates coils up to 150 lbs.
  • 3/12C Collapsible Coiler, 3 ½” wide x 12” I.D. x 21” O.D.
  • 3100M Measurer for 1/64” to 7/8” diameter material.
