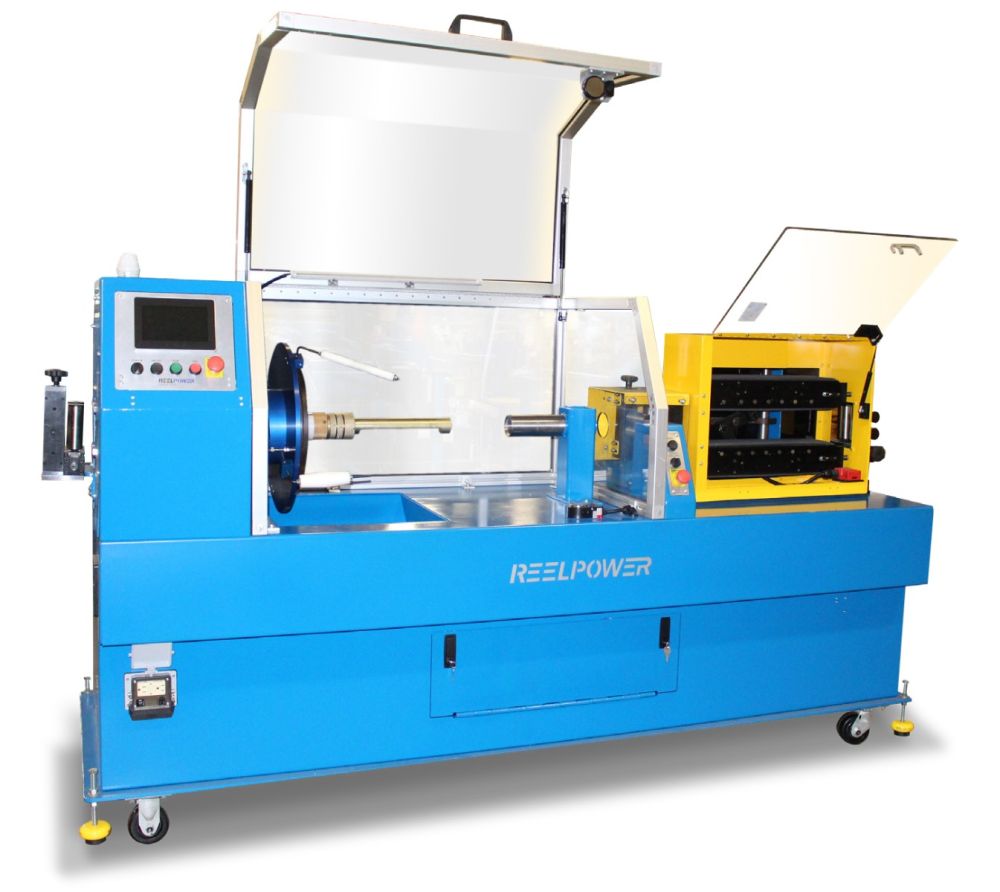

TM-100 TAPE WRAPPING SYSTEM

INTEGRATED PULLER

This tape wrapping system was designed for high speed applications of Mylar, Teflon, Kapton, or metallic tapes for insulating and/or shielding aerospace, computer, and hook up wire and cables.

SKU
TM-100 TAPE WRAPPING SYSTEM

Please call

TM-100 TAPE WRAPPING SYSTEM
Integrated Puller

This tape wrapping system was designed for high speed applications of Mylar, Teflon, Kapton, or metallic tapes for insulating and/or shielding aerospace, computer, and hook up wire and cables.

STANDARD FEATURES
• Automatic stop at programmed length
• AC servo driven tape head
• AC servo driven capstan motors
• 10” HMI touchscreen controls
• Wire speed and Head speed indicators
• Tape head hysteresis brake adjustment
• Casters & adjustable floor levelers

OPTIONS
• Dual and triple head systems
• Taping machine less puller
• Electric oven for curing taped insulation
• Wider tape widths & larger taping heads

CAPACITIES
• Core speed: 0-10 fpm
• Tape wind speed: 0-1,500 RPM
• Core Diameter: 1.5 inches max
• Tape pad ID: 3” to 14” COP
• Tape Width: 3/16” to 2“

UTILITY REQUIREMENTS
• 230 VAC/3PH/50-60Hz
• Instrument air: 90 psi

APPROXIMATE DIMENSIONS & WEIGHT
• 103”W X 36.5”D X 55.8”H
• Line height: 40.5 inches
• 2,580 lb

• TAPE WRAPPING HEAD
• INTEGRATED PULLER
• INLET MATERIAL GUIDE
• PULLER AND EXIT
• MATERIAL GUIDE
• TAPING HEAD
Integrated Puller This tape wrapping system was designed for high speed applications of Mylar, Teflon, Kapton, or metallic tapes for insulating and/or shielding aerospace, computer, and hook up wire and cables.
