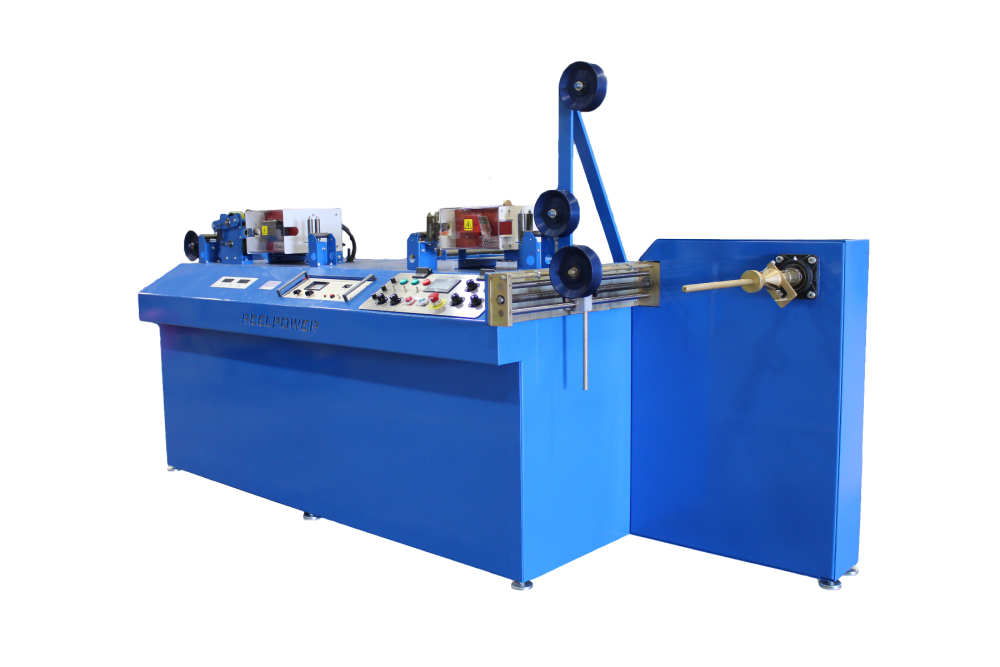

Wire Insulation Tester – WIT 101

Wire Insulation Tester WIT 101 High Speed Re-Spooler: The Wire Insulation Tester (WIT ) is powered by a 1 HP variable speed drive system providing speeds up to 1,000 ft per minute. Tension is electronically adjustable. The machine automatically stops when a fault is detected. A levelwind system is a standard integral part of the take-up portion of the WIT 101..

SKU
WIT

Please call

Wire Insulation Tester WIT 101 High Speed Re-Spooler: The Wire Insulation Tester (WIT ) is powered by a 1 HP variable speed drive system providing speeds up to 1,000 ft per minute. Tension is electronically adjustable. The machine automatically stops when a fault is detected. A levelwind system is a standard integral part of the take-up portion of the WIT 101..

Standard Features

  •  Wire sizes 30 gauge up to 3/8” OD
  • Speed : 0 to 1,000 FPM
  • Spool Sizes: 6” OD to 24” OD
  • Automatic Levelwind
  • Predetermined Stop-to-Length Counter
  • 120 V 1 Phase power required

Options

  • High frequency insulation tester
  • Spark Tester
  • FPM Indicator
  • Electronic Stop-to-Length Counter
  • Larger Capacities Available
  • Wire Diameter Measurement
  • Material Marking System
  • Auto Reverse to fault Feature
  • Electrolifts with Loading Carts
  • Cantilevered Shafts
  • Clinton Spark Tester
  • Automatic Take-Up Levelwind
  • Wire Insulation Tester
  • WIT 101 High Speed Re-Spooler
